Using AutoCAD's Etransmit Command

by Jeff Weber
(Vincennes, Indiana, USA)

AutoCAD - Etransmit create transmittal

AutoCAD - Etransmit create transmittal

AutoCAD's Etransmit command is a great tool for keeping your outgoing files organized. I think we can all agree that outsourcing work is becoming more and more common.

In saying that, we have all become more aware that proper communication and information sharing is more important than ever.

I cannot count the number of times I have been working on a project with a client (that's not “local”) where I had to send them drawings... only to have them call me and say “I’m missing the floor plan”.

Not only is this embarrassing but it also makes you look bad in the eyes or your client.

One way to avoid this situation is to use AutoCAD's ETRANSMIT command.

ETRANSMIT lets you group every item associated with a specific file into a single compressed (ZIP or EXE) file.

For instance, let’s say you have a drawing that has a floor plan, an elevation and a title block all XREF’d into it.

Now you want to send this drawing to your client for review.

Type ETRANSMIT on the command line.

If you have not saved your drawing recently, a warning box will appear telling you that you must save your file first.

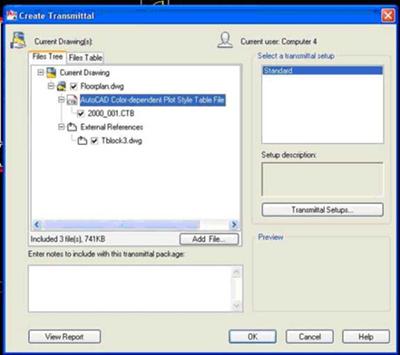

Once your drawing is saved, the create transmittal dialogue box will appear.

At this point you will see a typical Windows “tree structure”.

The tree will show you all the files that are attached to this drawing/file.

Xref’s, images and plot styles will all be represented.

You can select the “Add Files” button and select another file to include in this compressed file, i.e. PDF’s, Word documents or additional drawings.

If you are happy with the files that you have attached, you can then select the “Transmittal Setups” button.

A dialogue box appears showing the current setup being used, typically the “Standard” setup.

Click on the “Modify” button and another dialogue box appears.

This is where you tell AutoCAD what kind of file type you want, where you want the file to be placed and what version of AutoCAD to convert the files to.

There are other options here but these are the ones that I use most often.

I always set my file type to ZIP.

I also like being able to specify the version of AutoCAD here too.

That way, if you have a large set to send and you are ahead of your client on upgrades, all you have to do is indicate here what version to save to.

AutoCAD will automatically convert all the files to the version you specified.

Click OK, then Close and OK again.

A dialogue box appears and prompts you to select the location for the ZIP file.

Select your location and click save.

Now all your drawings are in a nice little package and ready to be sent to your client.

You now have the piece of mind of knowing that all the files are included in the project.

Comments for Using AutoCAD's Etransmit Command

Average Rating starstarstarstarstar

Click here to add your own comments

Dec 16, 2009
Rating
starstarstarstarstar
Etransmit and File Paths
by: Jason

Very good tip here Jeff.

I wish all offices I work with would use Etransmit. This tool would save companies a lot of money by cutting down on the time it takes to call up another office, explain what's missing, have them find the file(s) and then e-mail them.

CAD newbies pay heed to this tip! You will save yourself a lot of time using Etransmit when you need to send your work to other offices, or internal CAD departments for that matter.

One thing I really like about Etransmit is the ability to remove the paths from xrefs and images BEFORE sending. Cleans everything right up. I always include a note saying to make sure all the files are extracted into the same directory so there won't be any problems with reference files.

Jason
