Isometric Dimension Text in AutoCAD

by Muhammed hussain.j
(INDIA)

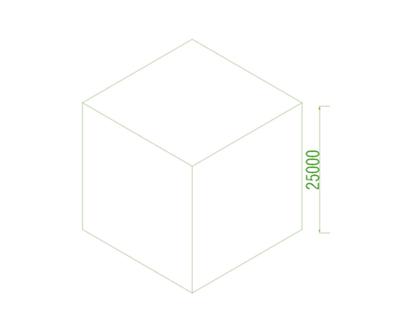

How do I align the dimension text in the above image?

How do I align the dimension text in the above image?

Hi,

My Name is Muhammed hussain.j,

My question is:

I've created an isometric view of a box in AutoCAD.

I am trying to mark its dimensions as is a metric view.

The problem I am having is I can't mark the text and dimension line the as the same angle.

Is their any trick to do that?

Please can anyone help me to clear this up?

Awaiting, Muhammed Hussain.j

Comments for Isometric Dimension Text in AutoCAD

Average Rating starstarstarstarstar

Click here to add your own comments

Nov 28, 2010
Rating
starstarstarstar
Set an Obliquing Angle
by: Joseph

I would set up two text styles first (ST) where you can specify the oblique angle to match your isometric linework.

Then setup two dimension style (D) and include the text styles.

Switch between the dim styles as needed.

Dec 20, 2010
Rating
starstarstarstarstar
Isometric Dimension Text in Autocad Reply
by: Anonymous

Easiest way to give a dimension in any angle is "dimalign" command. Click one end of the desired dimension and then click the other end.

Hope this helped.
